Generate and Replace the SSL Certificate for PAM Local Directory Service

Use this guide to generate a new SSL certificate for use by PAM’s Local Directory Service and to replace the existing certificate.

  1. Generate a new certificate by executing the following command from the command line in the PAM home folder $PAM_HOME:

    2. Copy
    On a Linux host:
    bin/PamKeytool.sh -genkey -keyalg "RSA" -alias ads.local -keystore web/conf/dskeystore.jks -validity 730 -deststoretype jks



    Copy
    On a Windows host:
    bin\PamKeytool.cmd -genkey -keyalg "RSA" -alias ads.local -keystore web\conf\dskeystore.jks -validity 730 -deststoretype jks

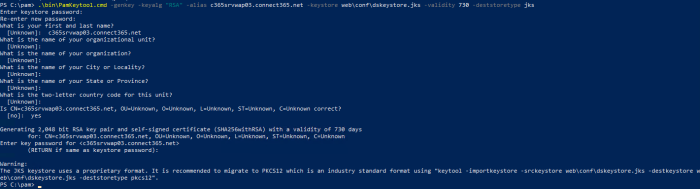

    Directory-Service-Certificate1

    Please note that the only field you have to fill is "What is your first and last name?” For this field, enter the FQDN which you'll use to connect from other nodes, or the host name of this node itself.

  2. Edit the Apache DS LDAP settings file ads-serverid=ldapserver.ldif located in the following folder using a text editor:

    Copy

    On a Linux host:

    $PAM_HOME/ds/instances/default/conf/ou=config/ads-directoryserviceid=default/ou=servers
    Copy

    On a Windows host:

    $PAM_HOME\ds\instances\default\conf\ou=config\ads-directoryserviceid=default\ou=servers



    Add 2 new parameters to the end of this file with the path to the keystore file and its password:

    ads-keystoreFile:

    ads-certificatePassword:

    Password can be stored as plain text or base64 encoded string. If you are using the base64 variant you'll need to add a second colon after the parameter name as shown in the second example below.

    The plain text version will look similar to this:

    Directory-Service-Certificate2

    And base64 encoded:

    Directory-Service-Certificate3

    You can convert a plain text to base64 using an online service or OS command-line utility: https://www.base64encode.org

  3. Restart the PamDirectory or pamdirectory service.

  4. On all master nodes run the following command from the $PAM_HOME location to import the new certificate:

    5. Copy

    On a Linux host:

    bin/PamDirectory.sh SSLImport localhost 10636
    Copy

    On a Windows host:

    bin\PamDirectory.cmd SSLImport localhost 10636

  5. Add the certificate to the java cert store by choosing 1 in the dialog

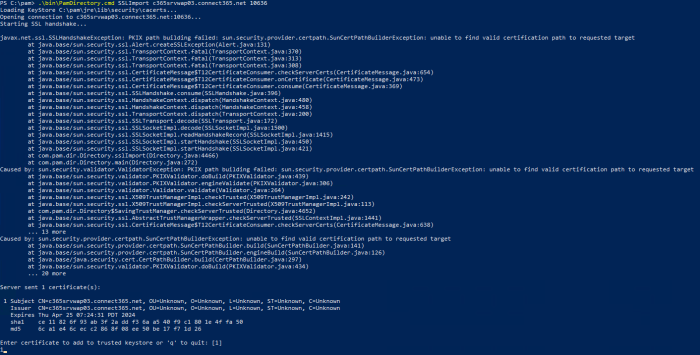

    Directory-Service-Certificate4

  6. Restart pammanager (Linux) / PamManagement (Windows) service on master nodes.
